Structural Steel Weight Calculator in Kg & Pounds

Steel Weight Calculator

The Steel Weight Calculator is a powerful and user-friendly web tool designed to simplify the process of calculating the weight of various steel and metal bars. It allows users to input specific dimensions and material types to calculate the weight, both in kilograms (kg) and pounds (lb). This tool is particularly useful for engineers, architects, and metal fabricators who need to quickly estimate the weight of materials for structural designs, manufacturing, or construction projects.

How to Use the Steel Weight Calculator

I) Material Selection:

Start by selecting the type of material from the dropdown menu. The calculator supports common materials such as:

Material Type	Density (kg/m³)	Density (kg/ft³)	Yield Strength (MPa)	Tensile Strength (MPa)	Typical Applications
Mild Steel	7850	222.41	250-400	400-550	Structural beams, reinforcement bars (rebar), pipelines
Cast Iron	7200	203.91	100-400	200-800	Pipes, foundations, machinery parts
Aluminum	2700	76.46	70-250	150-350	Lightweight structures, window frames, cladding
Acetal (Plastic)	1430	40.51	60-80	70-100	Gears, bearings, fasteners in precision equipment

II) Shape Selection:

Choose the shape of the metal bar from the available options:

Round Bar: A cylindrical shape
Square Bar: A bar with equal width and depth.
Rectangular Bar: A bar with different width and depth dimensions.
Hex Bar: A bar with six equal sides.

Each shape has a unique formula for calculating weight , which, when multiplied by the density, gives the weight.

III) Input Dimensions

You can choose from different units for each dimension, including millimeters (mm), centimeters (cm), meters (m), inches (in), and feet (ft).

IV) Calculation Results

The results are instantly displayed as soon as the dimensions are input:

Weight in Kilograms (kg): The calculated weight based on the input values and selected material.

Weight in Pounds (lb): The weight is also converted into pounds for ease of reference.

Understanding the Formula Behind the Calculator

The weight of any object is given by the formula:

$\text{Weight} = \text{Volume} \times \text{Density}$

Volume: This depends on the shape of the metal bar.
Density: Varies based on the material selected (measured in kg/m³).

Steel weight calculator formula

1. Round Bar:

The volume of a round bar is calculated using the formula for the volume of a cylinder:

$V = \pi \times \left( \frac{\text{Diameter}}{2} \right)^2 \times \text{Length}$

2. Square Bar:

The volume of a square bar is:

$V = \text{Width}^2 \times \text{Length}$

3. Rectangular Bar:

For a rectangular bar, the volume is calculated as:

$V = \text{Width} \times \text{Depth} \times \text{Length}$

4. Hex Bar:

For a hexagonal bar, the volume is calculated using the formula for the volume of a hexagon:

$V = \frac{1.732 \times \text{Width}^2}{2} \times \text{Length}$

$V = \frac{1.732 \times \text{Width}^2}{2} \times \text{Length}$ The value 1.732 is derived from $ 3\sqrt{3}3 $, and it remains constant regardless of the measurement system used (whether metric or imperial).

Example Calculation

Suppose we want to calculate the weight of a mild steel rectangular bar with the following dimensions:

Width: 50 mm
Depth: 20 mm
Length: 2 meters

Steps:

Select Mild Steel as the material.
Choose Rectangular Bar as the shape.
Enter the width as 50 mm, depth as 20 mm, and length as 2 meters.
The calculator will use the volume formula for a rectangular bar:

$V = 50 \times 20 \times 2000 = 2,000,000 \text{ mm}^3 = 0.002 \text{ m}^3$

Using the density of mild steel (7850 kg/m³), the weight is:

$\text{Weight} = 0.002 \times 7850 = 15.7 \text{ kg}$

Converting to pounds:

$15.7 \times 2.20462 = 34.61 \text{ lb}$

The final result will display as:

Weight (kg): 15.7 kg
Weight (lb): 34.61 lb

Steel Bars Shape and Their Uses

Steel bars come in various shapes and sizes, each suited for different applications:

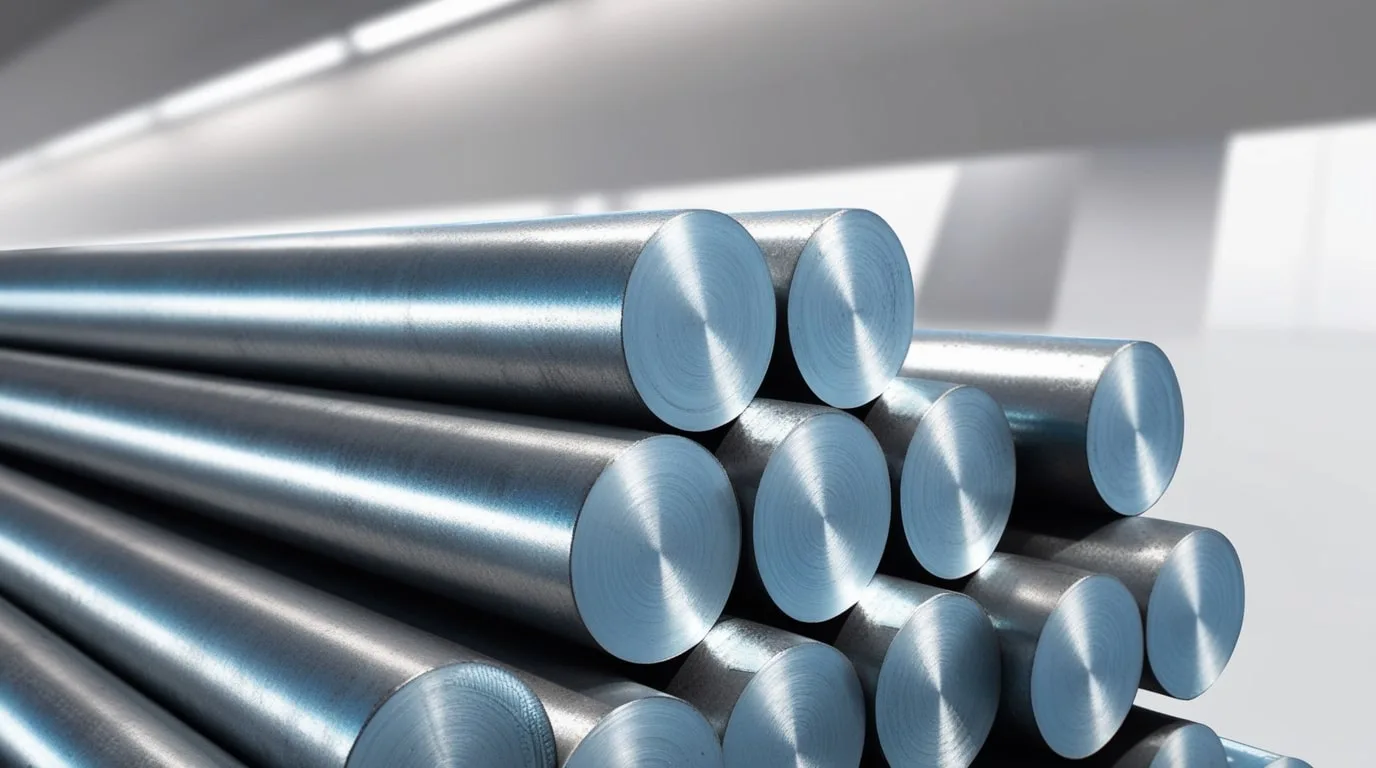

Round Bars: Commonly used in construction and manufacturing for axles, bolts, and other machine parts.
Square Bars: Used in structural applications, fabrication, and general manufacturing.

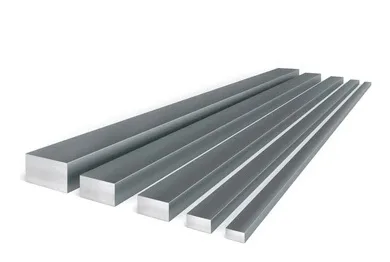

Rectangular Bars: Ideal for metal framing, structural applications, and precision machining.
Hex Bars: Commonly used for fasteners and other components that require hexagonal profiles for tool access.

FAQ

1. How do I calculate the weight of steel?

To calculate the weight of steel, you need to know its volume and density. The formula is:
Weight = Volume × Density.
For example, for a rectangular bar, the volume is calculated as Width × Depth × Length, and the density of mild steel is approximately 7850 kg/m³. Convert all dimensions to meters for accurate results.

2. What is the density of common metals used in weight calculations?

The density of common metals is as follows:

Mild Steel: 7850 kg/m³
Cast Iron: 7200 kg/m³
Aluminium: 2700 kg/m³
Acetal: 1430 kg/m³
These values are essential for accurate weight calculations.

3. How do I convert steel weight from kilograms to pounds?

To convert steel weight from kilograms to pounds, use the conversion factor 1 kg = 2.20462 lbs. Multiply the weight in kilograms by 2.20462 to get the weight in pounds. For example, 10 kg of steel is approximately 22.0462 lbs.

4. What is the formula for calculating the weight of a round bar?

The formula for calculating the weight of a round bar is:
Weight = (π × (Diameter/2)² × Length × Density).
Ensure all measurements are in the same unit (e.g., meters) for accurate results. For example, a round bar with a diameter of 10 mm and length of 1 meter would have a volume of π × (0.005)² × 1 = 0.0000785 m³.

5. How do I calculate the weight of a rectangular bar?

The formula for calculating the weight of a rectangular bar is:
Weight = Width × Depth × Length × Density.
For example, a rectangular bar with dimensions 10 mm (width) × 5 mm (depth) × 1 meter (length) would have a volume of 0.01 × 0.005 × 1 = 0.00005 m³. Multiply this by the density of the material to get the weight.

6. What units should I use for steel weight calculations?

For steel weight calculations, it is recommended to use consistent units. Common units include:

Millimeters (mm) for small dimensions.
Meters (m) for larger dimensions.
Kilograms (kg) or Pounds (lbs) for weight.
Always convert all measurements to the same unit before performing calculations.

7. How does the shape of the metal affect its weight calculation?

The shape of the metal determines the formula used to calculate its volume. For example:

Round Bar: Volume = π × (Radius)² × Length
Square Bar: Volume = Side² × Length
Rectangular Bar: Volume = Width × Depth × Length
Hex Bar: Volume = (1.732 × Width² × Length) / 2
Once the volume is calculated, multiply it by the material’s density to get the weight.

8. What is the difference between mild steel and cast iron in weight calculations?

The primary difference lies in their densities:

Mild Steel: 7850 kg/m³
Cast Iron: 7200 kg/m³
This means that for the same volume, mild steel will weigh more than cast iron. Always use the correct density value for accurate calculations.

9. Can I use this calculator for non-metallic materials like acetal?

Yes, the calculator can be used for non-metallic materials like acetal, provided you input the correct density value. For acetal, the density is 1430 kg/m³. The same formulas apply, but the density value changes based on the material.

10. How accurate is an online steel weight calculator?

An online steel weight calculator is highly accurate if the input values (dimensions and material density) are correct. However, always double-check calculations for critical applications, as small errors in input can lead to significant discrepancies in results.
